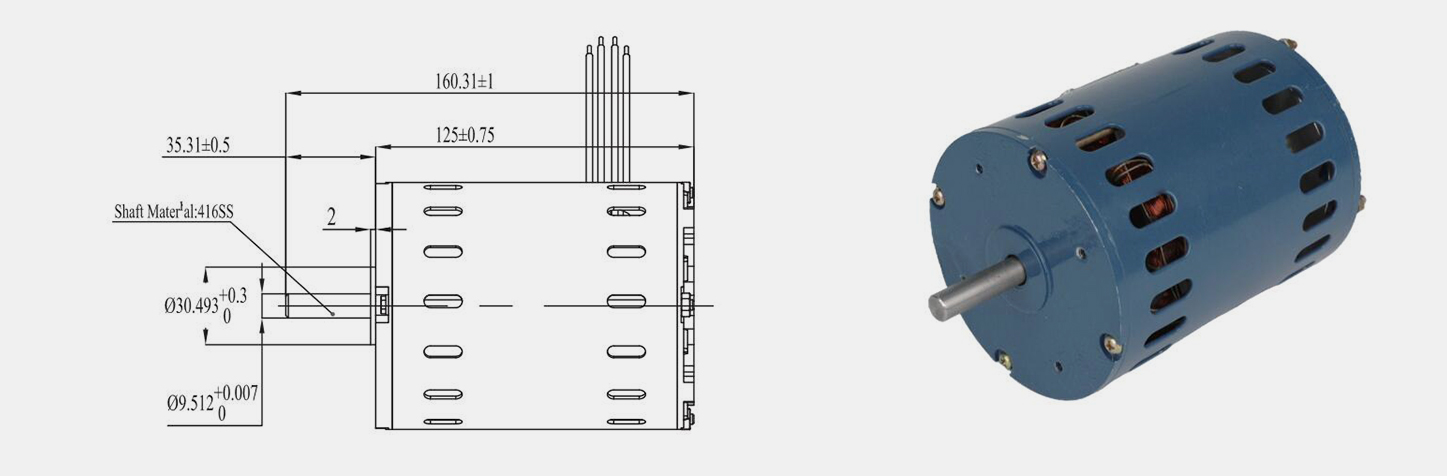

1500VAC 50Hz 5mA/1S Induction Motor Y97125

General Specifications
Dielectric Strength		1500VAC 50Hz 5mA/1S
Insulation Resistance		DC 500V/1MΩ
Ambient Temperature		-20°C to +40°C
Insulation Class		Class B, Class F

Electrical Specifications
Unit
Rated Voltage	VAC	115
Rated Speed	Rpm	1600
Input Power	W	70
Rated Current	A	0.6
Rated Frequency	Hz	60
Capacitance	μF	7
Weight of Motor	Kg	2.45
Motor Length	mm	125

1500VAC 50Hz 5mA/1S Induction Motor Y97125

The Single Phase Induction Motor Y97125 is an electric motor powered by a single-phase AC power supply. It features a compact structure and reliable operation. It employs capacitors for starting or ru...

Parâmetros do produto

×

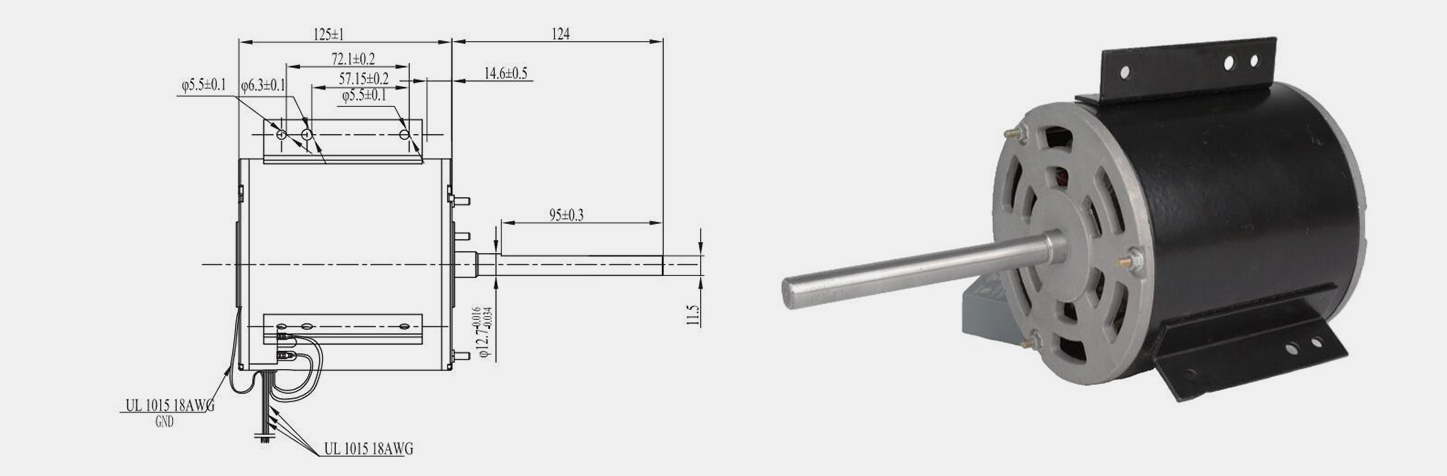

Single Phase Induction Motor Y124125

Enviar consulta

General Specifications
Dielectric Strength		1500VAC 50Hz 5mA/1S
Insulation Resistance		DC 500V/1MΩ
Ambient Temperature		-20°C to +40°C
Insulation Class		Class B, Class F

Electrical Specifications
Unit
Rated Voltage	VAC	115
Rated Speed	Rpm	1075
Input Power	W	185
Rated Current	A	3.2
Rated Frequency	Hz	60
Capacitance	μF	20
Weight of Motor	Kg	5.15
Motor Length	mm	125

Single Phase Induction Motor Y124125

The Single Phase Induction Motor Y124125 is a high-performance single-phase electric motor designed for applications requiring efficient and stable power output. It employs advanced manufacturing proc...

Parâmetros do produto

×

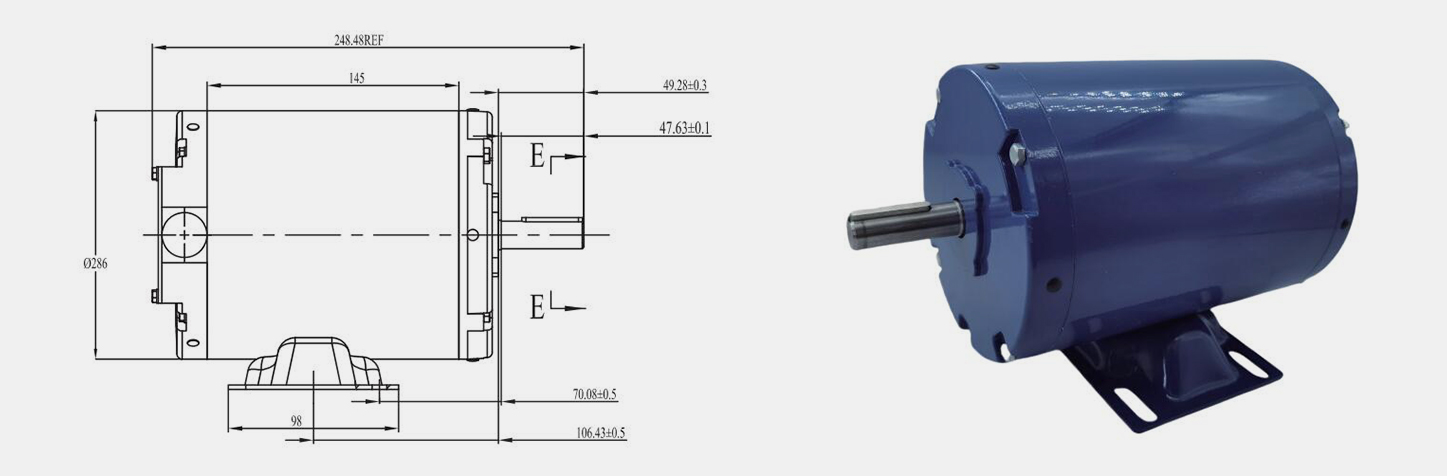

High-power Single Phase Electric Induction Motor Y286145

Enviar consulta

General Specifications
Dielectric Strength		1500VAC 50Hz 5mA/1S
Insulation Resistance		DC 500V/1MΩ
Ambient Temperature		-20°C to +40°C
Insulation Class		Class B, Class F

Electrical Specifications
Unit
Rated Voltage	VAC	230
Rated Speed	Rpm	1083
Input Power	W	374
Rated Current	A	1.66
Rated Frequency	Hz	60
Capacitance	μF	10
Weight of Motor	Kg	7.2
Motor Length	mm	200

High-power Single Phase Electric Induction Motor Y286145

The Single Phase Induction Motor Y286145 is a high-power single-phase electric motor designed for applications requiring high torque and continuous power output. It features a heavy-duty design capabl...

Parâmetros do produto

×

68ZYT motor CC escovado de 68 mm

Enviar consulta

Recursos:

Enrolamentos com isolamento duplo evitam quebras

O grande diâmetro do eixo de 8 mm resiste à torção

Proteção contra poeira/água com classificação IP54

68ZYT motor CC escovado de 68 mm

Definição: Motor robusto com rolamentos reforçados e estrutura de eixo, capaz de sobrecarga instantânea de 200%.

Parâmetros do produto

×

80 ZYT 82ZYT 80mm 82mm brushed dc motor

Enviar consulta

Features:

No-load speed up to 6000 RPM

Temperature sensor enables real-time overheating protection

82mm version supports dual shaft output

80 ZYT 82ZYT 80mm 82mm brushed dc motor

Definition: High-speed responsive motor with embedded temperature sensor for precision control.

Parâmetros do produto
